Coincident Speaker Technology Total Victory

The desire to create a breakthrough in any field of human endeavor must be fueled by a burning passion to be the best. Coupled with this must include the requisite expertise and the experience necessary to actually accomplish this daunting task. Further add the endless hours of time and labor with the need for boundless energy and the prospect of succeeding may nevertheless still prove elusive. However, when all of the above ingredients coalesce and the goal is attained, the result is the Coincident Speaker Technology Total Reference Loudspeaker.

The Total Reference is the culmination of a lifetime’s devotion and fanaticism with recreating the live musical experience in the home. This speaker exists for only one purpose: to enhance the conveyance of the musical message to a degree not experienced outside of a live concert. No expense and no effort were spared and no detail was deemed too trivial in creating the Total Reference. The mission in bringing the Total Reference to fruition was to afford the music lover the opportunity to experience in his own environment the most accurate musical reproduction possible with virtually any amplifier in existence, from flea powered SETs to large solid state and everything in between.

The Total References can be easily driven to concert hall levels by low powered tube amplifiers (3 watts or more) because they possess the 5 requirements which make this possible:

3. Total absence of any hard phase angles (meaning they are absolutely phase coherent electrically)

4. Very tight bass tuning (which makes it easier for low damping factor- high output impedance amplifiers like SETs to control the woofers).

5. Simple first order crossovers which do not rob amplifier power or reduce speaker sensitivity.

Many audiophiles believe the most accurate amplifiers are single ended triode tube designs, yet few speakers are capable of being properly driven by these amps. This creates a paradox of sorts. Speakers need amplifiers to create sound, yet the finest amplifiers cannot be used by virtually all the state of the art speaker contenders. These speakers must then be mated to inferior sounding amplifiers with resultant compromised sound. The Coincident solution is to create the finest loudspeaker that can be optimally driven by the finest amplifiers. The end result is the most accurate musical reproduction possible.

To create a state of the art loudspeaker requires that every component used in the design is the finest and that the sum of its parts are synergistically matched so that the final product is a unified whole. Therefore, not only must the design and concept of the speaker be state of the art, so too must the execution. This means that all the ingredients which comprise a speaker must be given equal attention with none being deemed less significant. Everything ultimately affects the sound, no matter how seemingly trivial it may appear to be. Everything used in the Total Reference was thought out in excruciating detail, tested and verified. From the less observable parts such as mounting bolts, wiring length, and solder to the more obvious such as crossover components, drivers and enclosure materials, nothing was left to chance. The Total Reference is state of the art in every conceivable manner.

Drivers –

The drive units used in the Total Reference were chosen because:

1. Not only do they represent the finest currently available, but they conform optimally
to the intended design.

2. They are very robust and reliable. They can handle tremendous amounts of power with no sense of strain or fear of break down. Yet at the same they are highly sensitive and require very little power to achieve high sound pressure levels.

3. They have very smooth roll off characteristics outside of their respective optimum frequency range.

All of the above listed factors mean that the crossovers used in the Total Reference can be exceptionally simple with only one component in the signal path for each frequency section. Impedance correction components are not even required, so smooth are the impedance curves. All this translates to unrivalled purity and transparency.

Tweeter –

In order to reproduce all the upper frequencies with complete transparency,
transient speed and precision and simultaneously be capable of capturing all the attendant harmonics necessitated the employment of a tweeter with ultra low mass. The driver that perfectly fits this bill was a newly developed, planar, isodynamic ribbon tweeter with a radiating surface mass less than the volume of a cubic inch of air. There is no sound that can elude its very nimble grasp yet its inherent strength permits its response to extend flat down to 1700 Hz. Furthermore, this special tweeter presents a purely resistive, totally flat 8 ohm load with no dips, no peaks or spikes. Very high sensitivity is partly due to the use of a highly powerful neodymium magnet structure that measures 3”x 6” and weighs in excess of 2 lbs. An ultra rigid,
solid aluminum faceplate ensures resonant free reproduction and the elimination of diffraction affects.

This tweeter has proven to be nearly indestructible. It can be driven to high SPLs with distortion artifacts that are vanishingly low. Furthermore, at low or high levels, there is no change in sonic characteristics. The tweeter always sounds detailed, smooth and refined.

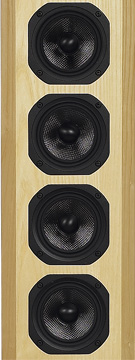

The all important midrange is where the majority of the music emanates. No speaker that aspires to state of the art status can be compromised in this vital area of performance. To that end, what many would consider the purest driver available for this task was chosen for the Total Reference. A specially developed woven carbon fiber 5.25” midrange unit with an extremely light yet rigid cone was used. An oversize magnet structure and edgewound high purity copper voice coil on a Kapton former ensures high power handling, high sensitivity and extremely low distortion, especially at high listening levels. Terminals are thick gauge, gold plated copper which ensures large contact area and a very solid connection.

While this driver has very flat, even response from 60 Hz – 4500 Hz, it is operated in the Total Reference only from 94 Hz to 2 KHz. The drivers are rolled off at the low end acoustically by the use of bass tuning, (the purest way to accomplish this) not electrically which would require the addition of another component (a large value capacitor) in the signal path. This limited operating range ensures completely optimized response, highest sensitivity and power handling capability and lowest distortion. Preventing the driver from reproducing the bottom octaves relieves the midrange units from unnecessary long cone excursions which increase upper frequency distortion. The use of four of these drivers substantially increases power handing, sensitivity and
further reduces distortion due to the voice coils never overheating since heat distribution is spread over four units instead of just one. The 400% increase in driver area dramatically enhances dynamics and impact.

For state of the art reproduction, subwoofer bass that is seamless with the mids
and the highs is mandatory. Not only must the bass extend flat to 20 Hz, with weight, authority and impact, the low frequencies must be articulate, tightly tuned and never sound boomy, or out of balance with the rest of the frequency
spectrum. It is in the midbass and low bass where most speakers suffer badly
with comparison to live music. When attending a concert the visceral impact of
bass and midbass instruments (such as drums, double bass etc.) is awe inspiring. The sense of weight and intensity can be heard as well as felt. This rarely if ever happens when listening to music at home on an audio system. It is in this area of performance, possibly more than any other, that home speakers fail to measure
up. The speakers that are relatively adept in this area are mostly hopelessly inadequate everywhere else. Conversely, the speakers that are transparent and truthful in the midrange and the highs do not at all recreate the sense of drama
and intensity in the low frequencies. Are these two areas of performance mutually exclusive? For the overwhelming majority of speakers, the answer is yes. There exist very few speakers that are smaller than a mini van and cost less than a bungalow that can do it all. Until now, that is. The Total Reference is unique among speakers of reasonable size and cost, that can with equal aplomb capture the sound of a pin dropping and realistically recreate the furor of a cannon being shot.

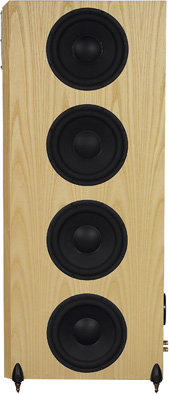

How is this accomplished? It starts with an enclosure of the proper volume (the laws of physics must be adhered to) and total rigidity and ends with the selection of the finest woofers that money can buy that are specifically designed for this purpose. The new 12” extra long stroke unit employed in the Total Reference has pushed the performance limits for subwoofers. The construction standards are truly remarkable: Thick cast iron frame ensures complete rigidity, heavy duty, stiff, Nomex fiber cone that is almost impervious to flexing, a magnet structure that weighs in excess of 12 lbs., thick gauge gold plated copper terminals to maintain high current capability.

This driver fulfills every demand for deep bass (f3 is 17 Hz). With its unlimited power handling capacity, 110 db levels at 20 Hz with virtually unmeasurable distortion and complete long term reliability, this new design accomplishes state of the art bass reproduction that was previously not possible. While a single driver will excite and please the most demanding bass aficionado, imagine what four of these per speaker will accomplish. The Total Reference uses 4 of these remarkable subwoofers in each speaker. For the first time, live music impact, punch, and genuine subwoofer bass with all the visceral excitement experienced when attending a concert is a reality. Because the tuning of the woofers is extremely tight, there is no concern about overloading a moderate size room with excessive bass. The bottom octaves, for all their explosive dynamic capability, are perfectly in balance with the midrange and the highs. There is no accentuation of any frequency range. The Total Reference is beautifully balanced from top to bottom. Indeed, the speaker not only measures virtually flat from 20Hz – 20 Khz, it sounds that way as well.

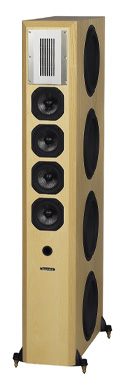

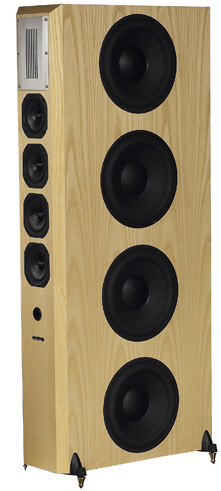

The Total Reference, out of necessity, is a large, albeit elegant speaker. It is the size
it is, not because it looks impressive(although it does) or as a justification for its
selling price,(which is a genuine bargain although it is hardly inexpensive), but
because to fulfill its mandate as a truly full range(20 Hz – 20Khz) state of the art transducer, it had to be. This is a simple case of adhering to the laws of physics. In order to achieve true, undistorted 20 Hz bass response, the cabinet volume must be
a predetermined size (and that means big). Constructing a speaker of proportion this generous and have it be as non resonant and inert as a small speaker, proved to be

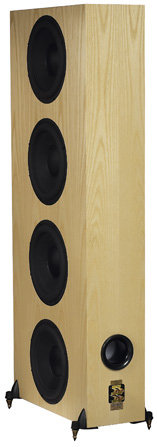

a monumental task. The challenge commences with the selection of the base material- 1.15” MDF Hardwood which is veneered in furniture grade Ash inside and out. The tweeter and the midranges are housed in their own ported sub enclosure which contains computer designed window braces horizontally placed between each driver. The woofers are mirror imaged side mounted on a double MDF wall (2.3” thick) so that their massive cone excursion capability would have a totally rigid foundation impervious to any flexing. Computer designed window braces are horizontally located between each woofer to further augment the integrity of the enclosure. The fundamental resonance frequency is benignly high (330 Hz).

All this effort, technology and innovative design and meticulous execution result in an enclosure that does not contribute its own sonic signature to the sound. To ensure a solid foundation for the speaker, Coincident Extender Feet (which enlarges the footprint by 4”) and oversize dual tapered solid brass spikes are included.

As with all Coincident speakers, first order crossovers (which are the purest and preserve phase coherency) are used with only the finest components, matched to within 1%, all hardwired with lead to lead construction (eschewing the use of unnecessary wires or connectors). The signal path contains only one capacitor (Mundorf – The most transparent cap for the purpose) and two inductors (proprietary 10 AWG OFC Litz - one for the midrange and one for the bass). That is it. Elegant simplicity but as Einstein remarked- not too simple. This crossover is the most transparent, unobtrusive in existence. In bypass tests, its presence is virtually undetectable.

The Total Reference, while hardly inexpensive, is a genuine bargain given its cost of manufacture and unparalleled performance. Is the speaker worth the price of a Honda Accord? That question can be best answered by asking if another product of similar type can be had for less money that is constructed as well, sounds as good and offers all the other features listed above. If the answer is no (and we obviously strongly believe it is no) and that comparable performance and build quality can only be purchased for many thousands of dollars more, then the Total Reference represents excellent value. There is no other speaker that does everything of which the Total Reference is capable and sells anywhere near its price.

For those who cherish the musical experience and have desired to recreate that gift in their home, the Total Reference loudspeaker will prove revelatory. If music is one of life’s great pleasures, the Total Reference must be experienced. It will open a new world of unbridled joy.


Specifications: Frequency Response: 20 Hz – 27 KHz Impedance: 8 ohms (never dipping below 6 or going above 10 ohms) Sensitivity: 97 db @ 1m – 1 watt Power Requirements: 3 watts – 500 watts Dimensions: 56.5” H x 9” W x 24” D Weight: 230 lbs ea. Driver Compliment: (per speaker) 1 Isodynamic Planar Ribbon Tweeter 4 Carbon Fiber 5.25” Midranges 4 Nomex Fiber 12” Woofers Price: $22,000 Cdn /pr
